PEMF and constipation

Interstitial Cells of Cajal (ICC) are pace keepers of our colonic contractions. That have the voltage gated Ca²⁺ channels and Ca²⁺ chloride channels. They stoe Ca²⁺ too! We cannot forget that Ca²⁺ causes smooth muscle of our colon to contract. When damaged, constipation ensues. Moving magnetic fields can also move charged particles from our microbiome activities, good and bad. This post is devoted to the notion that PEMF can get things moving through our guts in multiple ways. Just be careful with crazy, insane, long exposures!

ICC, pediatric gastrointestinal motility, Friedmacher &Rolle 2023

“Over the years, various gastrointestinal motility disorders have been described in infants and young children in which symptoms of functional bowel obstruction arise from ICC-related neuromuscular dysfunction of the colon and rectum. ”

According to this review Interstitial cells of Cajal (ICC)

1. ICC are pacemaker cells that propagate electrical slow waves to gastrointestinal smooth muscle cells. This is a direct coupling.
2. ICC mediate both inhibitory and excitatory motor neurotransmission from the enteric nervous system. This goes with the featured image.
3. Mechanical stretch sensing ion channels are involved in ICC activity. Could this be via Stim1, Orai, and Trpv1?
4. ICC form networks with intramuscular terminals of vagal afferents and may also have a role in afferent signaling. Afferents being neurons that take messages back to the brain.

While this review has little “electrical” information of the ICC, it presents an absolutely stunning array of fluorescent immuno cytochemistry images. These do a fantastic job of moving us past cartoons that do not show us how crowded biological molecules are in situ.

ICC, kids with refractory constipation, Yuan 2023

Yuan 2023 is only available for free in abstract form. They compared children with and without refractory constipation with colonic manometry and just a few full thickness colonic biopsies. The intestinal biomes were also studied. Abnormal ICC morphology was observed, microbiota disruptions, and changes in waves of muscle contraction. After looking at the basic physiology of how ICC work, this post will present some links to copyright images and explore how the microbiome contributes to the circuitry. Let’s first look at what ICC do based on what proteins they express.

The protein tool box of ICC tell us what they do, Lee 2017

Many excellent reviews and studies have been published on the work of Interstitial cells of Cajal (ICC). Lee 2017 conducted a massive ICC sequencing study of isolates from the jejunum (JICC) and the colon (CICC). I’ve pulled together two tables of ion channels. The first table presents the most abundant ion channel transcripts. The second table pulls channels mentioned in the text of Lee 2017, other posts on this website, and other pblications mentioned in this post. TFPKM stands for FPKM, or Fragments Per Kilobase of transcript per Million mapped reads. There are 567 “ion channels” in the list.

gene			Expression (FPKM)
Symbol	Full name	Activity	JICC	CICC
Ano1	anoctamin 1, Ca2+ activated Cl– channel	most sources say depolarization	702.72	1,068.03
Atp2a2	ATPase, Ca2+ transporting, cardiac muscle, slow twitch 2	returns Ca2+ to intracellular stores	133.31	847.63
Atp2a3	ATPase, Ca2+ transporting, ubiquitous	returns Ca2+ to intracellular stores	674.42	657.88
Slc12a2	Na/K/Cl cotransporter	water follows ions, volume regulation	334.13	527.06
Slc24a3	(Na+/K+/Ca2+ exchanger),	Ca2+(out) + K+(out) + 4 Na+(in) = Ca2+(in) + K+(in) + 4 Na+(out)	103.63	353.56
Atp5b	ATP synthase, H+ transporting mitochondrial F1 complex, beta subunit	makes ATP	766.27	322.59
Atp5a1	ATP synthase, H+ transporting, mitochondrial F1 complex, alpha subunit 1	makes ATP	403.89	221.20
Atp6v0c	ATPase, H+ transporting, lysosomal V0 subunit C	helps acidify lysosome	197.96	220.34
Atp5g3	ATP synthase, H+ transporting, mitochondrial F0 complex, subunit C3 (subunit 9)	makes ATP	463.93	190.81
Atp1a1	ATPase, Na+/K+ transporting, alpha 1 polypeptide	establishes membrane potential	502.26	169.97
Atp5j	ATP synthase, H+ transporting, mitochondrial F0 complex, subunit F	makes ATP	248.47	150.67
Atp5l	ATP synthase, H+ transporting, mitochondrial F0 complex, subunit g	makes ATP	275.02	122.53
Atp5k	ATP synthase, H+ transporting, mitochondrial F1F0 complex, subunit e	makes ATP	324.79	121.62
Atp5h	ATP synthase, H+ transporting, mitochondrial F0 complex, subunit d	makes ATP	247.55	115.59
Atp1a2	ATPase, Na+/K+ transporting, alpha 2 polypeptide	establishes membrane potential	194.41	113.84
Vdac1	voltage-dependent anion channel 1	mitochondria outer membrane, cell death	210.23	113.33

The expression data spreadsheet of Lee 2024 was searched for genes mentioned in the text. Only ion channels with a score of 10 or higher are shown. While the ryanodine receptor is expressed in very small amounts in ICC, it is not included in the featured image cartoon.

Gene		Function		Expression (FPKM)
Symbol	Full name	Activity	Ion	JICC	CICC
Cacna2d1	calcium channel, voltage-dependent, alpha2/delta subunit 1	VDCC	Ca2+	25.51	30.41
Cacna1c	calcium channel, voltage-dependent, L type, alpha 1C subunit	VDCC	Ca2+	13.13	10.97
Cacna1a	calcium channel, voltage-dependent, P/Q type, alpha 1A subunit	VDCC	Ca2+	16.57	3.66
Itpr1	inositol 1,4,5-trisphosphate receptor 1, a channel	Ca2+release from ER	Ca2+	25.39	52.19
Stim1	stromal interaction molecule 1	connects Ca2+ deleted ER to ORA Ca2+	Ca2+	31.56	39.79
Pkd1	polycystic kidney disease 1 homolog	Channel, details lacking	Ca2+	72.35	98.22
Tmem66	transmembrane protein 66	inhibits STIM/ORAI 1	Ca2+	65.89	66.72
Gas6	growth arrest specific 6	binds Ca2+, few details	Ca2+	60.04	42.69
Trpc1	transient receptor potential cation channel, subfamily C, member 1	PEMF channel	Ca2+	24.46	17.00
Orai1	ORAI calcium release-activated calcium modulator 1	Channel, connected by STIM1 to ER	Ca2+	14.07	29.55

ICES M1 PEMF and ICC rhythms?

Unlike many commercial PEMF devices available to biohackers, the Micropulse M1 device allows the user some ability to set the frequency. We’ve got two rhythms in these pace maker cells. One is the depolarization and smooth muscle contraction. The other is Ca2+ sparks.

ICC slow waves Hwang 2009

In a previous study Hwang 2009 studied the effect of Cl^– channel blockers aimed at ANO1 were used to test the hypothesis that ANO1 splice variants are responsible for pacemaker activity in the mouse, monkey, and human gastrointestinal tract. Nifumic acid was used to block Cl^– channels.

figure	species	location	frequency cycle / min	duration, sec	IC50 μM
Fig 3	mouse	antrum	3.2	5	5.43± 0.3
Fig 4	monkey	antrum	3	~2.7	3.59 ±1.4
Fig 5	mouse	small intestine	32	~0.8	150±3.9
Fig 6	monkey	small intestine	12	2.5	160 ± 2.2
Fig 7	human	small intestine	~11	5?

The motivated reader is invited to view other figures in the public access publication. This cartoon from López-Pingarrón 2023 illustrates the electrical coupling between ICC, neurons, and smooth muscle. It is one of many mages that inspired the featured image of this post.

Baker 2021 Ca²⁺ transients

This group used complicated fluorescent imaging techniques to view time dependent changes extracellular Ca²⁺ changes. The popular culture of PEMF is that it opens voltage gated Ca²⁺ channels. In this case a quote from the abstract will be enough.

Interstitial cells of Cajal (ICC) generate pacemaker activity responsible for phasic contractions in colonic segmentation and peristalsis. ICC along the submucosal border (ICC-SM) contribute to mixing and more complex patterns of colonic motility. We show the complex patterns of Ca²⁺ signaling in ICC-SM and the relationship between ICC-SM Ca²⁺ transients and activation of smooth muscle cells (SMCs) using optogenetic tools. ICC-SM displayed rhythmic firing of Ca²⁺transients ~ 15 cpm and paced adjacent SMCs. The majority of spontaneous activity occurred in regular Ca²⁺ transients clusters (CTCs) that propagated through the network. CTCs were organized and dependent upon Ca²⁺ entry through voltage-dependent Ca²⁺ conductances, L- and T-type Ca²⁺ channels. Removal of Ca²⁺ from the external solution CTCs. Ca²⁺ release mechanisms reduced the duration and amplitude of Ca²⁺ transients but did not block CTCs. These data reveal how colonic pacemaker ICC-SM exhibit complex Ca^2+-firing patterns and drive smooth muscle activity and overall colonic contractions

video 1 is an amazing video showing Ca2+ increases in ICC and SM at the same time. The viewer may even see changes in the time course of Micro-Pulse devices. Video 2 shows high spacial resolution of Ca2+. It is best to go directly to the paper for this one.

1. Fig 1 Focus on Panels A&B red fluorescent staining for ICC marker kit. The fluorescence disappears (panel C) when the submucosa is stripped away. This is the part that is exposed to the microbiome.
2. Fig 2 is one of those beauty of nature fluorescent images that show the close spacial proximity of smooth muscle cells and ICC. It also shows temporal displacement of Ca²⁺ transients. Does PEMF change conductance of Ca²⁺ through ICC-SM gap junctions?
3. Fig 3 some spacial temporal stuff
4. Fig 4 Near by sub mucosal IC dihydroC talk to each other.
5. Fig 5 shows high time resolution at multiple firing sites leaving open the possibility that some of the Micropulse M1 settings might be in sync.
6. Fig 6… average percentages of firing sites during a Ca²⁺ wave. Values are calculated for 1 s and plotted in 85 ms bins
7. Fig 7 Ca²⁺ outside the cell matters. What does this mean if PEMF can get extracellular Ca²⁺ moving?

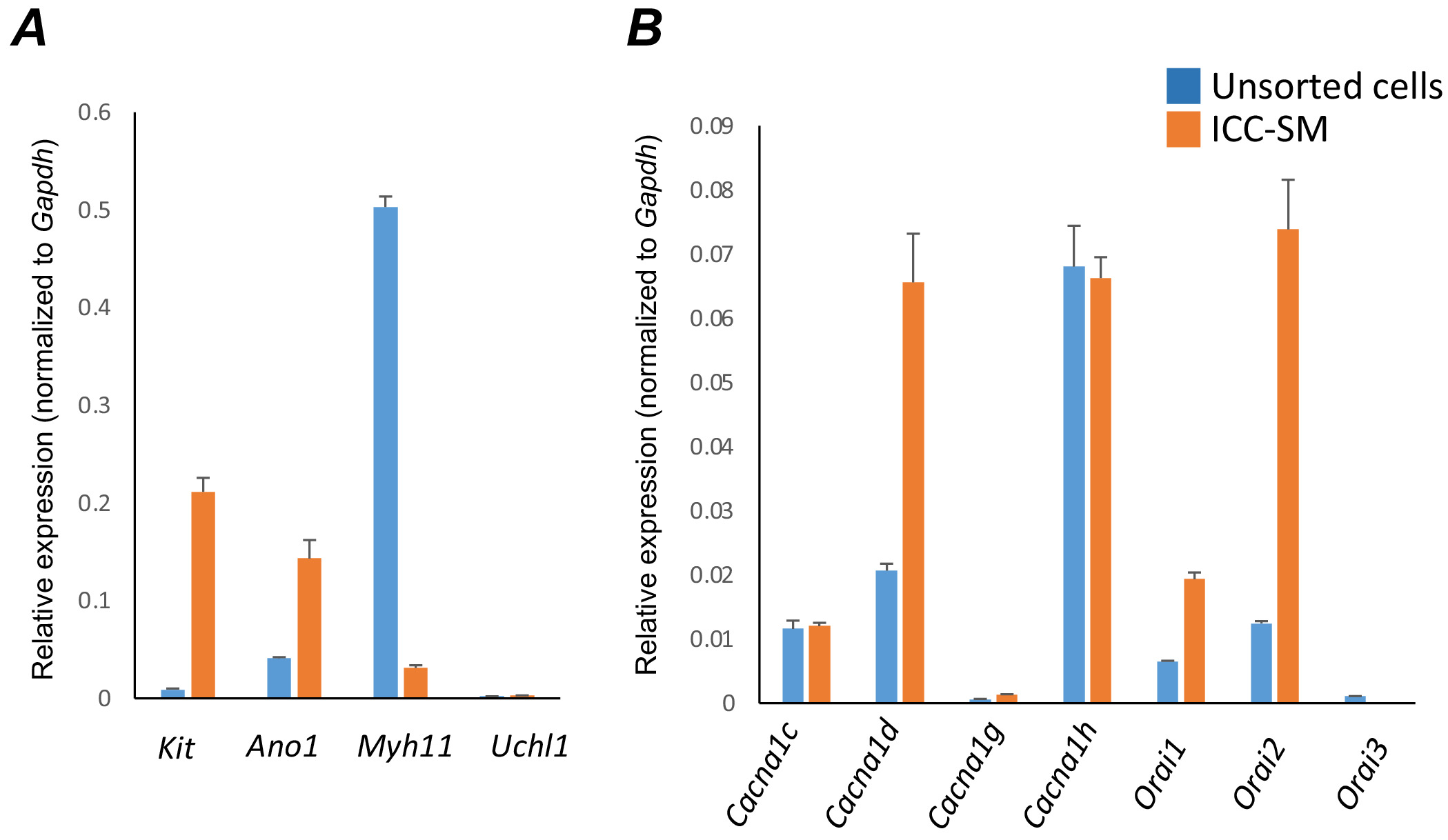

8. Fig 8, ICC and SM cells were sorted successfully sorting Kit/Ano1 ICC from myosin heavy chain smooth muscle. L-Type Ca²⁺ channels (Cacna1c and Cacna1d) T-type Ca2+ channels ( Cacna1h) and Store‐operated Ca²⁺ entry (SOCE) channels (Orai1 and Orai2) were found in ICC Cacna1d and Orai1&2 were more in ICC and smooth muscle cells.

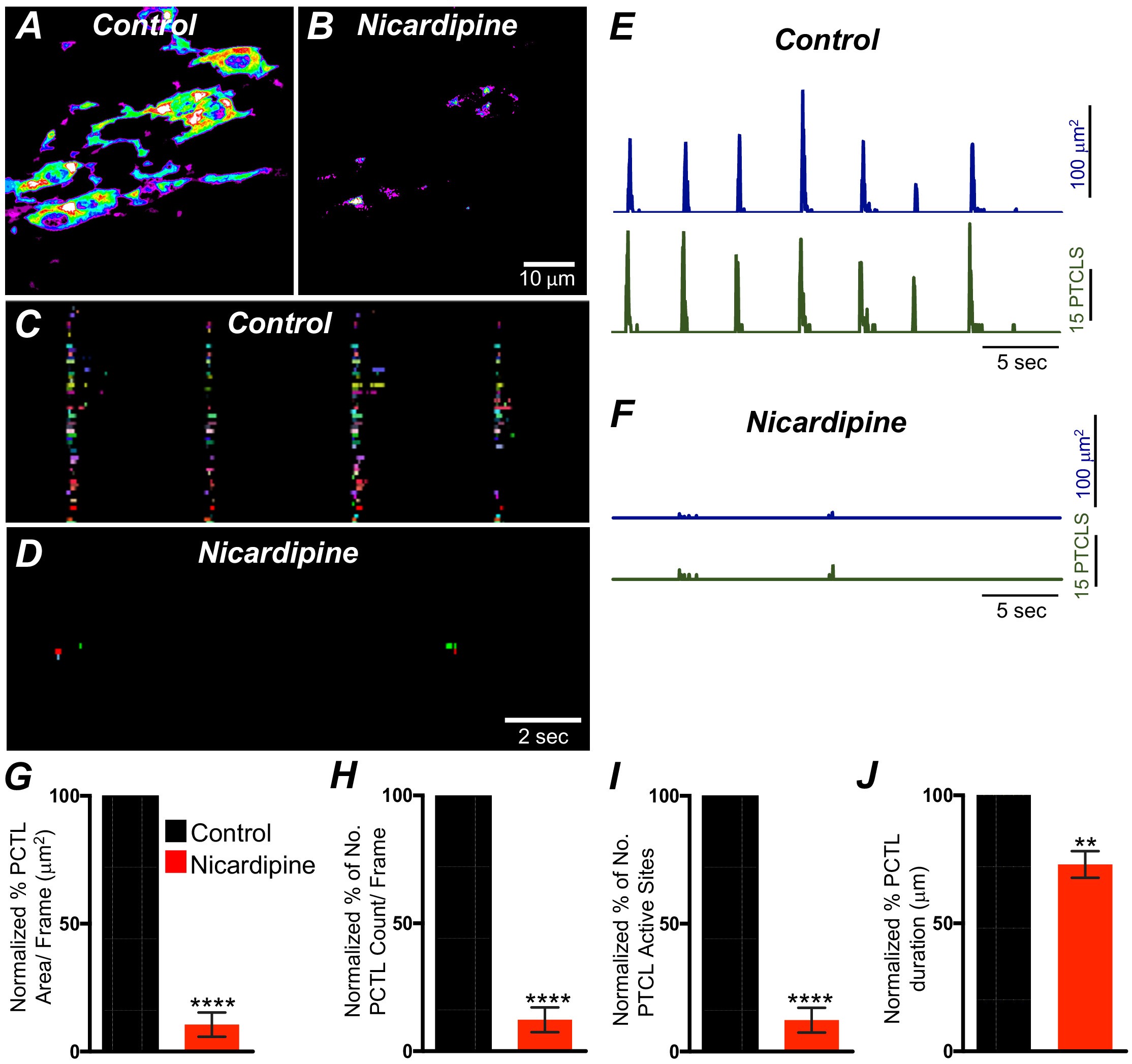

9. Fig 9 L-type Ca²⁺ channel blocker

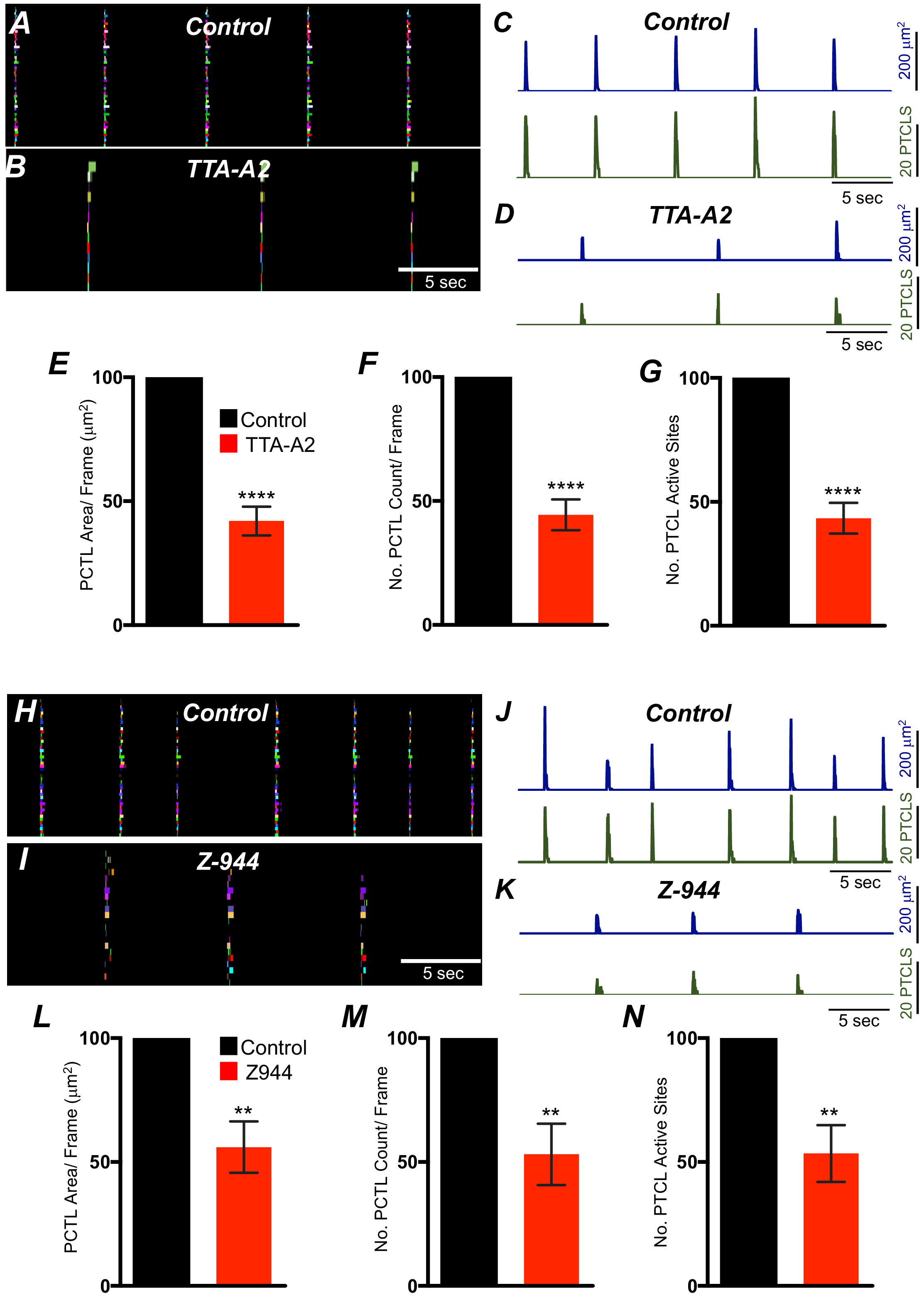

10. Fig 10 CaV3, (T-type) Ca²⁺ channel blockers

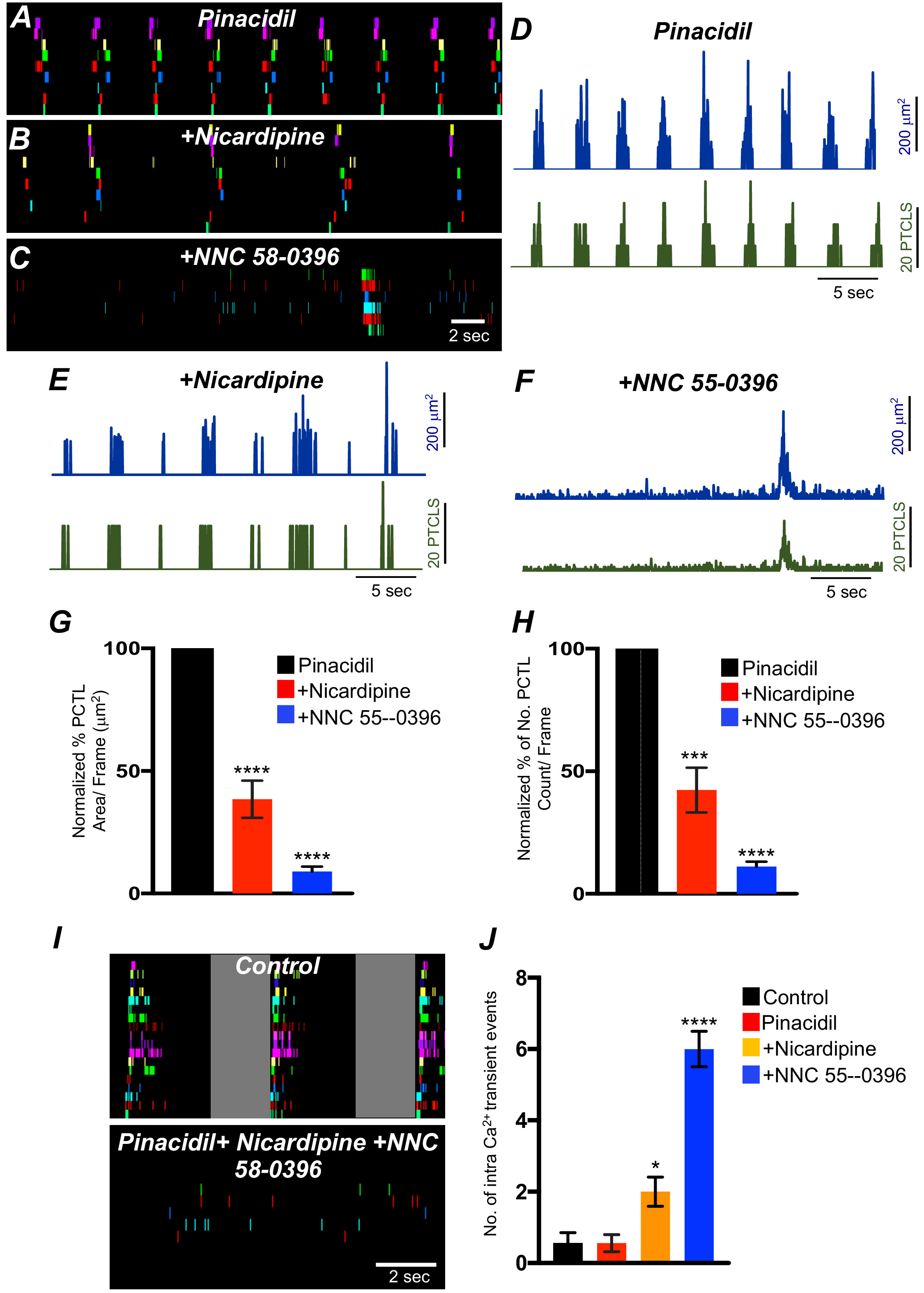

11. Fig 11 pinacidil, ATP gated K⁺ channel blocker; nicardipine dihydropyridine, Ca2+ channel blocker; NNC 55–0396, T-type Ca²⁺ blocker in combination.

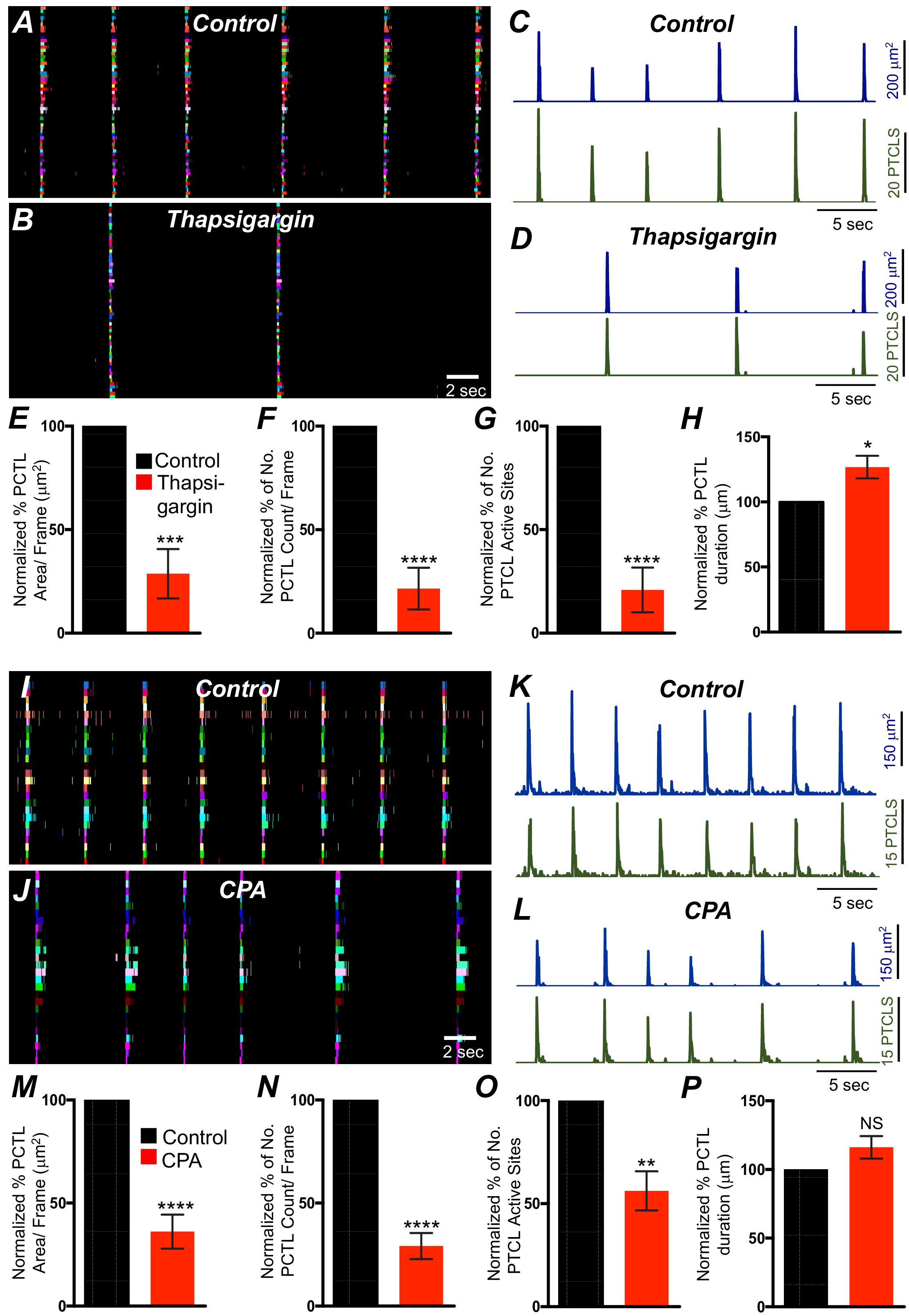

12. Fig 12, Thapsigargin is an inhibitor of SERCA, the Ca²⁺ endoplasmic/sarcoplasmicCa2+ ATPase returnes Ca²⁺ to intracellular stores is part of the process.

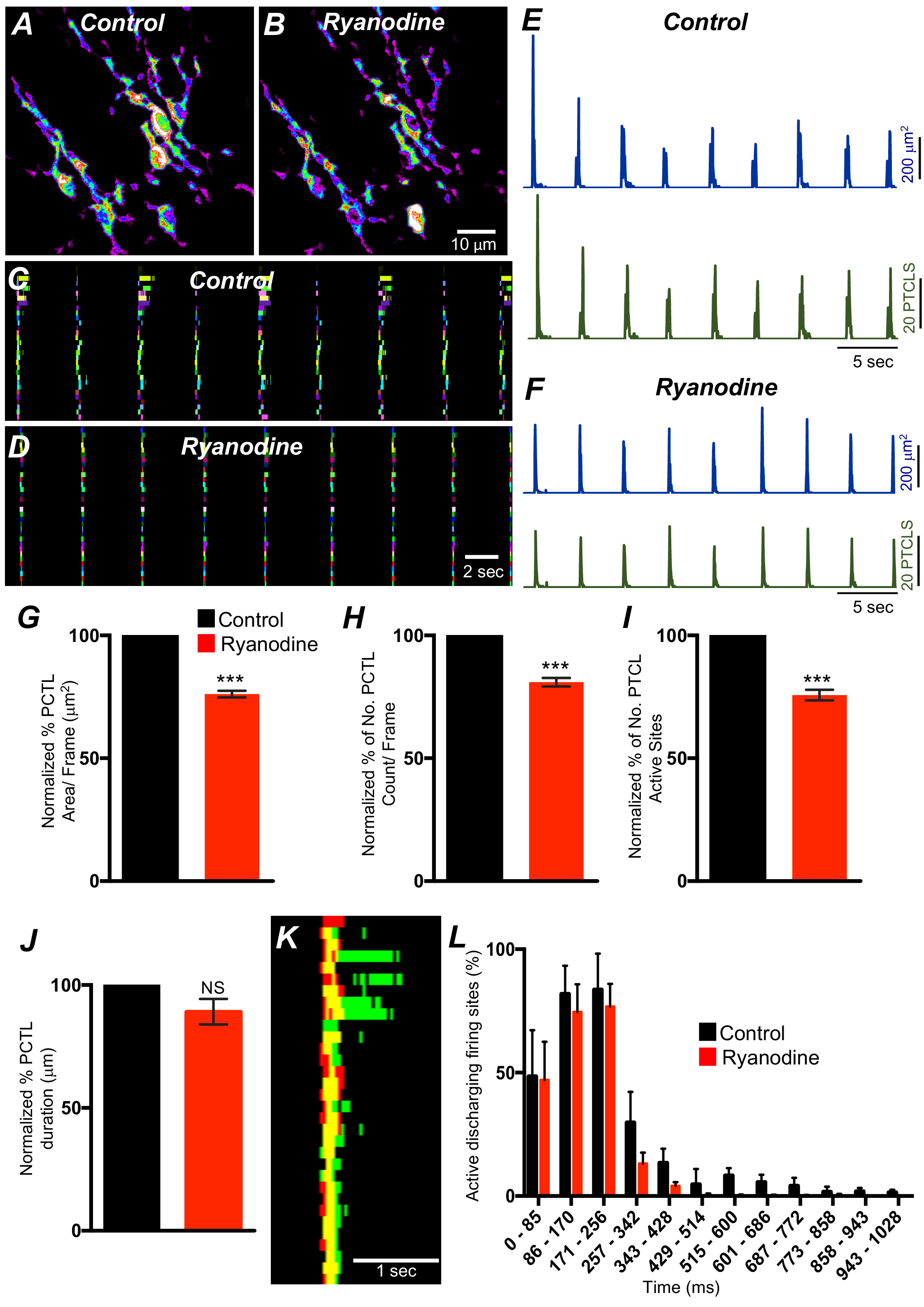

13. Fig 13 The ryanodine receptor, TRPV1-3, and and the IP₃ receptor Ca²⁺ channel are a small part of the Ca²⁺ mobilization picture.

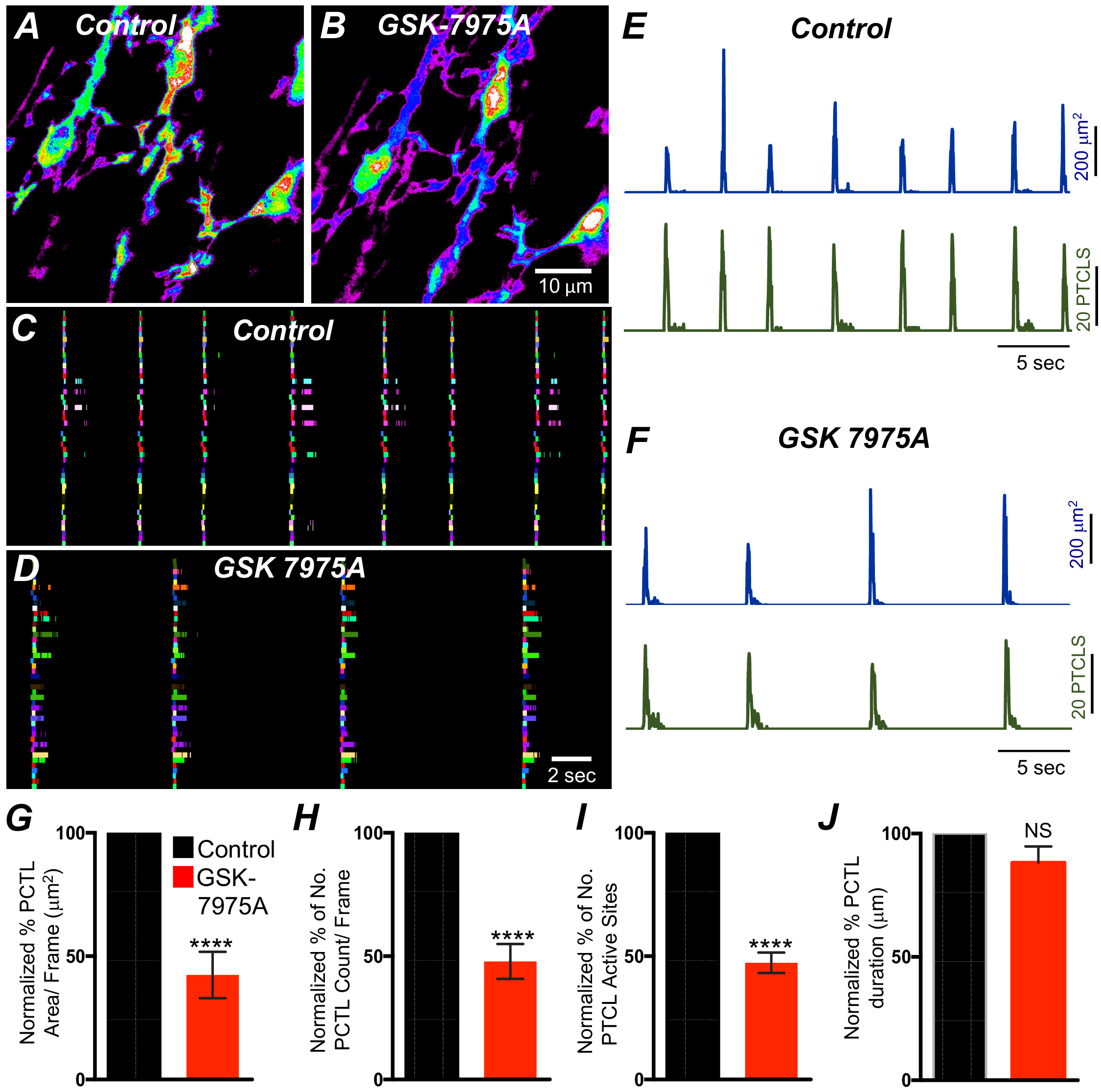

14. Fig 14 Store Operated Ca²⁺ is involved

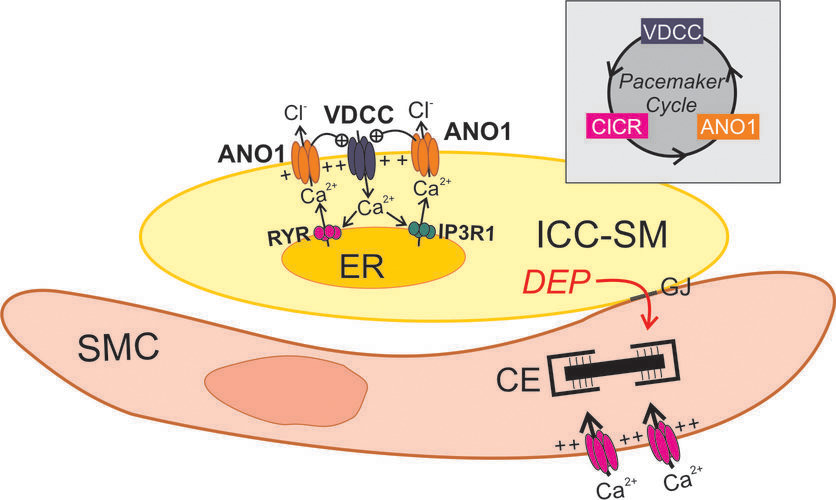

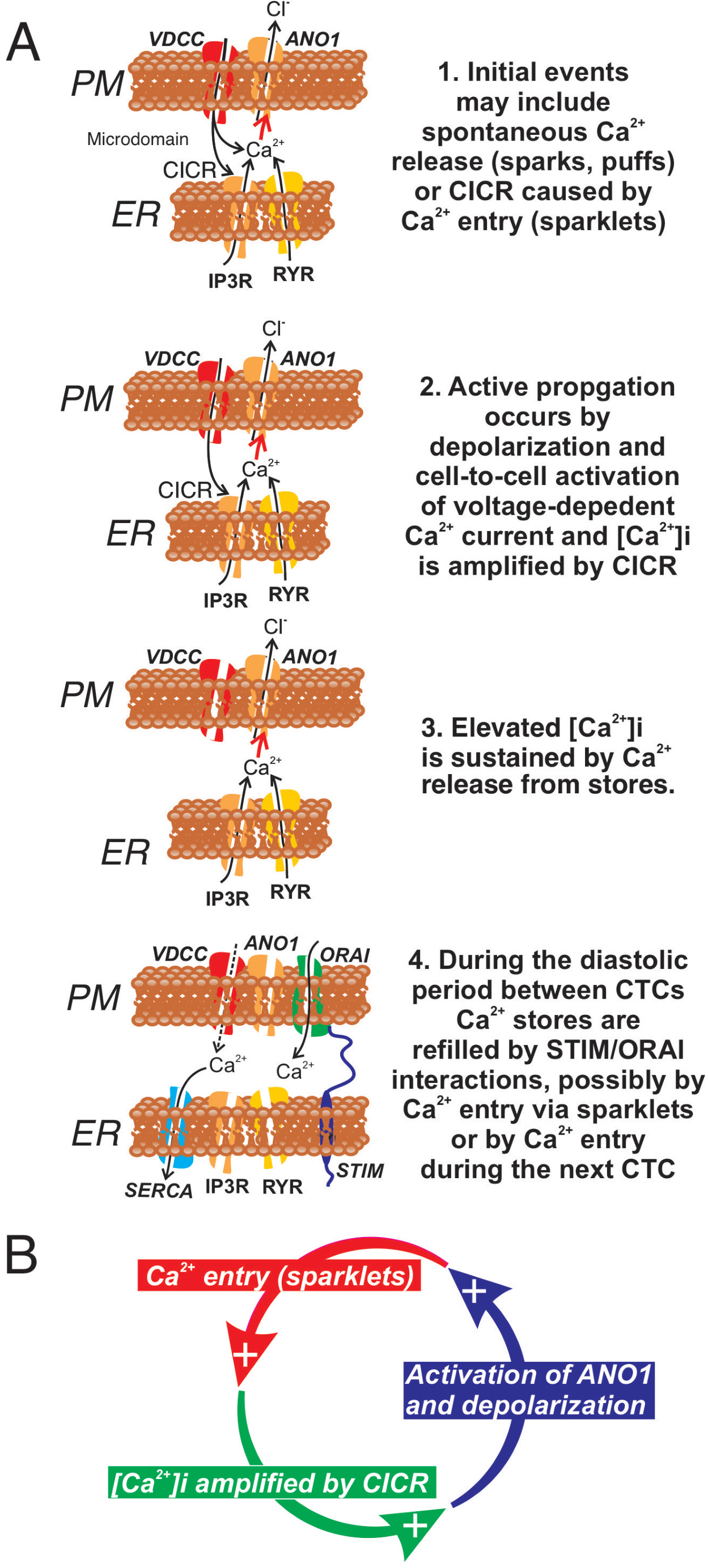

15. Fig 15, ⭐⭐⭐Tying all of this together in a two cartoons.

What this means for contracting the colon?

Lee 2017 suggests that ICC can be a buffer for Ca²⁺ as well as electrical control of the smooth muscle cell membrane potential by way of Ano1. Membrane potential is another way of letting Ca²⁺ into the smooth muscle cell.

Baker 2021 pulled in acto-myosin contraction of smooth muscle in a Fig 15 supp cartoon. It is time to abandon all hope that PEMF effects only one of the many ion channels that regulate smooth muscle tone. There are many transporters and channels of Lee 2017 that were not explored.

Kaszuba-Zwoińska is another great review on this topic.

The little brain and the microbiome Sharkey and Mawe 2023

The journey up to this point (Baker, Hwang, Lee) has been there are a massive number of ion channels and transporters in the sub mucosal ICC. Sub mucosal means they are in close proximity to the mcirobiome and all the small molecules produced by the microbiome.

Fig 1 Schematic overview of the gut-brain-microbiota axis in micro circuits.

This is a really nice image that also includes spinal cord motor neuron innervation of the gut. The mcrobiome communicates with epithelial cells, including enteroendocrine, chemical sensing tuft cells, and immune cells in the lamina propria that relay messages with enteric nerves, enteric glia to modulate the body’s response to the lumen environment. Mention is given to CNS reflexes. The primary virtue of this cartoon of this cartoon is that it gives an overview of the cell types in a less crowded way.

Fig 2 The myenteric plexus is a very crowded place

Sharkey and Mawe have a fluorescent immunohistochemistry image of neurons (labeled with ant-HuC/D, blue) and glia (labeled with anti-S100B, pink). This figure also shows a cartoon of the sub mucosal plexus of which we’ve just been covering the ICC and smooth muscle cell Ca2+ sharing. The picture is becoming much more complicated just in the submocal layer.

For the PEMF hack a take home message is that things are really crowded in these parts of our bodies. There is always the possibility that PEMF works by stirring up stagnant charged particles in these regions.

Sharkey and Mawe give us the connection between the microbiome and the ICC even though they do not appear in this cartoon. Chemically and mechanically activated enteroendocrine cells form synaptic connections with intrinsic primary afferent neurons. There are also immune cells floating around in the sub mucosa.

For the PEMF hack, just stirring up stagnant chemicals or gentle movement of charged particles might be part of the process.

Fig4 moving poops requires relaxation and contraction of smooth muscle

The text of this figure discusses neurotransmitters and such. “Upon a chemical or mechanical luminal stimulus, intrinsic primary afferent neurons cause the activation of ascending interneurons that synapse with excitatory motor neurons evoking an oral contraction, whereas the activation of descending interneurons leads to the excitation of inhibitory motor neurons eliciting a relaxation anally. ” Neurotransmitters include: nitric oxide, substance P, acetyl choline, VIP, and purines.

Many PEMF hacks like to think that PEMF opens up voltage gated Ca²⁺ channels, which We have covered in the previous section. Added neurons greatly complicates matters. Surely Faraday’s Law of Induction stirring of these neurotransmitters may change things. If a poop gets stuck, getting it unstuck is a complicated matter.

Fig 5 bile acids, LPS, short and long chain fatty acids

and associated text reiterates the importance of enteroendocrine cells and intrinsic primary afferents. Toll like receptors (TLR) and the the noxious chemical receptor Ca²⁺ channel TRPA1 are added to the image. Also added are free fatty acid receptors (FFAR). TLR4,in particular, responds to lipopolysaccharide of Gram negative bacteria. Pathogen Associated Molecular Pattern (PAMP) is common to TLR. The aryl hydrocarbon receptor (AHR) transcription factor appeared in the text but not the cartoon. TGR5 is the bile acid receptor

This particular cartoon has a nice layer of mucus in it. Wikipedia authors mention the polyelectrolyte properties of mucus that must include counter ions. Just something to thing about when it comes to Faraday’s law of Induction.

Fig 6 Immune cells are in communication with the Little Brain

This figure does a nice job of summarizing immune cells, neurotransmitters, and cytokines of the sub mucosa. Intrinsic and extrinsic primary afferents commutate with deeper layers of neurons. Afferents carry sensory information from the periphery to the CNS. Intrinsic and extrinsic refer to where the cell bodies of the neurons are located.

This figure presents an assortment of interleukins, cytokines released by cells of the immune system.

It would seem that interleukins seem to influence the health of ICC.

Fig 7 Goblet cells release mucus

This is something to think about when applying any kind of stimulus to teh GI track.

Fig 8 CNS circuits

CNS input is from the spinal cord as well as the vagus nerve. There is no direct CNS connection with muscle, these authors claim, but rather the enteric nervous system. This is a phenomenal figure for PEMF hacks who have tried, sometimes successfully, to get things moving by stimulating the vagus.

Fig 9 Enteroendocrine cells

Enterochromaffin cells and tuft cells are regulated by the microbiota. Tuft cells respond to microbial signals via succinate (SuncR1) and taste (Tas1R/Tas2R) receptors and release acetylcholine (ACh) and immune mediators [IL-25 and leukotriene C4 (LTC4)] to regulate neuroimmune signaling in the lamina propria…. also response to bile acids, short chain fatty acids….Piezo 1 and 2 are stretch sensitive Ca²⁺ channels. Perhaps they signal the presence of a stool tha is not that compressible.

Fig 10..Microbiomes can be bad influences, consult the text!

With terms like “reactive gliosis” and “neuronal cell death” this figure makes it clear that it is impossible to understand everything. Even if one brand of PEMF or another elicits contraction via voltage gated Ca²⁺ channels, movement of Ca²⁺ between ICC and smooth muscle cells, or whatever, it may not cure underlying issues with the microbiome and toxic effects.

Redox reactions and ICC, and killing with PEMF

This section blends what the López-Pingarrón 2023 review says about oxidative stress and ICC and the Kaszuba-Zwoińska 2005 PEMF studies showing ICC killing after prolonged exposure.

quote from López-Pingarrón 2023

Generation of reactive oxygen and nitrogen species (ROS and RNS). ROS are produced during the normal aerobic cell metabolism. Superoxide anion (O₂^•−) is formed from oxygen (O₂) mainly in the mitochondria. O₂^•− either reacts rapidly with nitric oxide (^•NO) to produce toxic peroxynitrite (ONOO⁻) or is catalyzed by superoxide dismutase (SOD) to generate hydrogen peroxide (H₂O₂), which can be neutralized by catalase or glutathione peroxidase (GPx). In presence of transition metal ions, such as ferrous ion, H₂O₂ forms hydroxyl radicals (^•OH) by the Fenton reaction. GR: glutathione reductase; GSH: reduced glutathione; GSSG: oxidized glutathione; NADP: nicotinamide adenine dinucleotide phosphate; NADPH: reduced NADP; NOS: nitric oxide synthase.” Link to figure

Long term PEMF exposure

• Kaszuba-Zwoińska exposed rats, in groups of four, to PEMF for four weeks. An equal number of non-exposed rats were used as controls.
• Unlike QuantumTx’s downfield PEMF, the magnetic field generated by coil was directed vertically with a sinusoidal 10 kHz frequency.
• The cages sat in rectangular coils.
• The authors claimed that magnetic fields of such frequencies are commonly generated by audio equipment.
• This frequency is too high to depolarize autonomic fibers, heat the tissue, or other non-disclosed effects.
• Wave bursts with a duration time of 30ms strength of 300µT and frequency of 1Hz
• were generated. The frequency of the RF bursts is on line with the fastest slow waves.
• After each period of exposition tissue samples from both groups were excised from the stomach, duodenum and colon. The tissue sectionsfrom both exposed and unexposed rats were immunohistochemically stained with polyclonal anti-c-kit that the Kaszuba-Zwoińska used as a marker for ICC.

PEMF exposure	1 week	2 weeks	3 weeks	4 weeks
Duodenum	63.0± 20.9 *	32.8 ±9.4 *	21.1 ± (7.6) *	23.4 ± 9.5 *
Proximal colon	88.3 ±27.1	44.1± 12.1 *	33.7 ± 6.4 *	33.7 ± 12.8 *
Fundus	40.1 ±22.7 *	27.0 ±18.0 *	18.1 ± 6.6 *	12.2 ± 9.8 *
Pylorus	100.0 ±10.8	93.3 ±10.0	99.1 ± 26.9	83.3 ± 32.4
Pacemaker	58.1 ± 27.8	78.7 ±16.9	57.5 ± 26.8	36.7 ± 20.

able 1. Percentage [%] of ICCs present in the rat’s gastrointestinal tract upon different periods of exposure to PEMF in comparison to control group. Results expressed as mean ± SD.

In a second publication the same year, Kaszuba-Zwoińska 2005, PEMF was shown to generate apoptosis in ICC in a dose dependent as revealed by immunostaining with antibody against proapoptic protein Bax. Bax increases the opening of, the mitochondrial voltage-dependent anion channel (VDAC), which leads to the loss in membrane potential and the release of mitochondrial cytochrome C. Recall that Lee 2017 demonstrated large representation of CDAC mRNA in rat jejunal and colonic ICC.

Lorentzian Force mixing, that’s all?

The Interstitial Cells of Cajal are important players in constipation (Friedmacher 2023, López-Pingarró 2023, Yuan 2023). Transcriptomics reveals that Ca²⁺ is an important component of ICC functioning. The ICC Ca²⁺ gated Cl^– channel Ano1 is an important part of the slow wave of our colons. (Hwang 2009). The movement of Ca²⁺ in ICC involves multiple channels (Salah 2021) The Sharkey and Mawe review forces us to thing about the rest of enteric nervous system and the microbiome. Many PEMF hacks are convinced that PEMF works by pushing Ca²⁺ through voltage gated Ca²⁺ channels. There are a bunch of them. (Lee, Baker, etc_) Perhaps PEMF just stirs charged paricles up! Wikipedia authors have written extensively on the physics of moving charges creating magnetic fields, the paths taken of moving charges when then encounter magnetic fields, and so on. Perhaps PEMF is a moving electromagnetic field that disperses charged particles doing harm or just in need of being someplace else to do good. Prolonged exposure can do harm (Kaszuba-Zwoińska 2004)
